Stable & Durable Forklift Hose Reels Withstand Various Geographic Locations & Extreme Climates

Forklift hose reels are devices that store and dispense forklift hydraulic hoses or cables. They are usually mounted on the side of a forklift or crane, with the hose/cable wrapped around a spool inside the reel. Their compact design, small footprint, high load, and high strength working life design make them particularly suitable for the operational requirements of construction vehicles and forklift trucks.

Our forklift hose reel rotary-seal structure adopts B+S® brand combination seals for the whole series, which are multi-channel one-piece; the cable series adopts military-grade electric slip rings, which can adapt to the complex on-board operating environment, and has the IP65 rating of dust-proof and water-proof capability.

Features & Advantages

  • Safety improvement
  • Downtime reduction
  • Efficiency increase
  • Versatility

ESMH500S

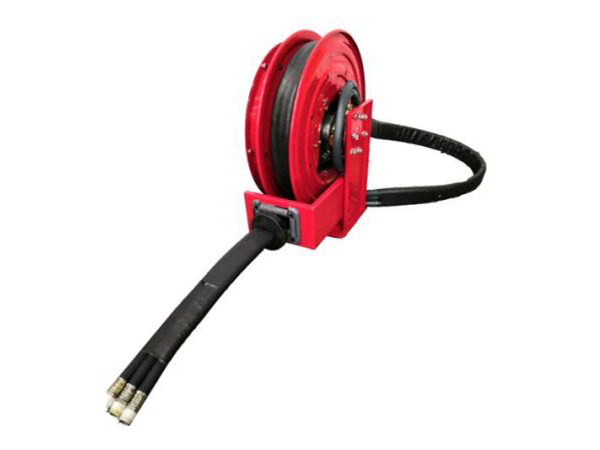

A red EMSH500S electric motor driven hose reel
EMSH500S electric motor driven hose reel

Properties

  • Output hose: 1/2"
  • Max. working pressure: 30 MPa
  • Reel coiling method: spring driven
  • Color: black, red, and yellow
  • Applicable temperature: -20 °C to +120 °C
  • Input hose: 1/2"
  • Hose material: PVC
  • Hose reel material: carbon steel
Table 1: ESMH500S Hose Reel Parameter
Item Port & Core
Number		 Hose I.D. / Cable Square
(inch)		 Pressure/Lmax
(bar)		 Working Length
(m)		 Reel Inlet Hose Outlet
ESMH500S0303040007 3 3/8 4 7 M 22" × 1.5 F BSPT 3/8"M
ESMH500S0304040005 3 1/2 4 7 M 22" × 1.5 F BSPT 1/2"M
ESMH500S series static pressure is 35 MPa, and the pressure in the table is dynamic pressure.
Table 2: ESMH500S Hose Reel Specification
Item Reel Diameter Roller Drum Outer Diameter Reel Height Axial Length Radial Depth Base Length Base Width Hole Axial Distance Hole Radial Distance Numerical Aperture Through Hole Diameter
ESMH500S0303040007 492 225 508 216 497 180 212 90 180 4 11
ESMH500S0304040005 492 225 508 216 497 180 212 90 180 4 11
Dimensions are in millimeters.

ESDH500F

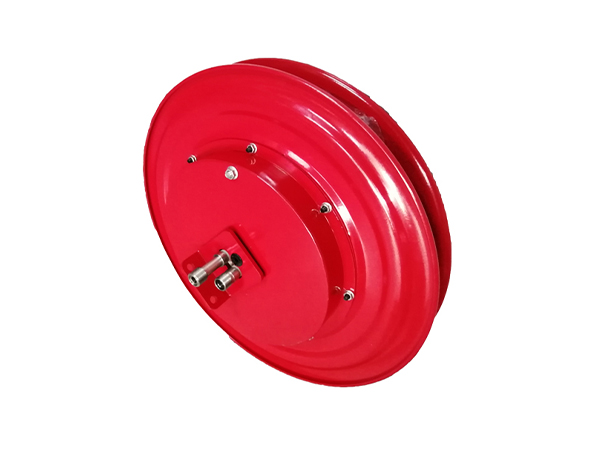

A red ESDH500F automatic rewind hose reel
ESDH500F automatic rewind hose reel

Properties

  • Output hose: 3/4"
  • Max. working pressure: 30 MPa
  • Reel coiling method: spring driven
  • Color: red, yellow, black, and blue
  • Applicable temperature: -20 °C to +120 °C
  • Input hose: 3/4"
  • Hose material: rubber
  • Hose reel material: carbon steel
Table 3: ESDH500F Hose Reel Parameter
Item Port & Core
Number		 Hose I.D. / Cable Square
(inch)		 Pressure/Lmax
(bar)		 Working Length
(m)		 Reel Inlet Hose Outlet
ESDH500F0201220012 2 1/4 22 12 M 22" × 1.5 M M 22" × 1.5 F
ESDH500F0204220008 2 1/2 22 8 M 22" × 1.5 M M 22" × 1.5 F
ESDH500F series static pressure is 35 MPa, and the pressure in the table is dynamic pressure.
Table 4: ESDH500F Hose Reel Specification
Item Reel Diameter Roller Drum Outer Diameter Reel Height Axial Length Radial Depth Base Length Base Width Hole Axial Distance Hole Radial Distance Numerical Aperture Through Hole Diameter
ESDH500F0201220012 475 220 475 159 475 49 80 0 55 2 11
ESDH500F0204220008 475 220 475 159 475 49 80 0 55 2 11
Dimensions are in millimeters.

ESDH370F

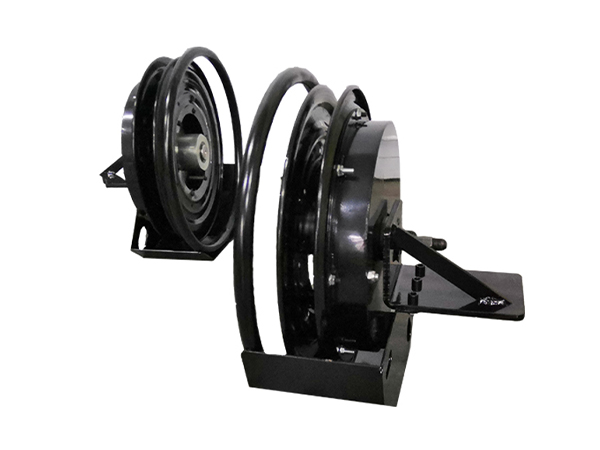

2 black ESDH370F hydraulic hose reels
ESDH370F hydraulic hose reels

Properties

  • Output hose: 1/4"
  • Color: black
  • Applicable temperature: -20 °C to +120 °C
  • Input hose: 1/4"
  • Hose material: PVC
Table 5: ESDH370F Hose Reel Parameter
Item Port & Core
Number		 Hose I.D. / Cable Square
(inch)		 Pressure/Lmax
(bar)		 Working Length
(m)		 Reel Inlet Hose Outlet
ESDH370F0201220006 2 1/4 22 6 M 16 × 1.5 M M 16 × 1.5 F
ESDH370F0202220005 2 5/16 22 5 M 16 × 1.5 M M 16 × 1.5 F
ESDH370F0203220004 2 3/8 22 4 M 16 × 1.5 M M 16 × 1.5 F
ESDH370F series static pressure is 35 MPa, and the pressure in the table is dynamic pressure.
Table 6: ESDH370F Hose Reel Specification
Item Reel Diameter Roller Drum Outer Diameter Reel Height Axial Length Radial Depth Base Length Base Width Hole Axial Distance Hole Radial Distance Numerical Aperture Through Hole Diameter
ESDH370F0201220006 375 182 375 159 375 49 80 0 55 2 11
ESDH370F0202220005 375 182 375 159 375 49 80 0 55 2 11
ESDH370F0203220004 375 182 375 159 375 49 80 0 55 2 11
Dimensions are in millimeters.

Application

  • Forklift, pump truck, and crane
  • Truck crane
  • Automobile crane lifter
  • Reciprocating platform

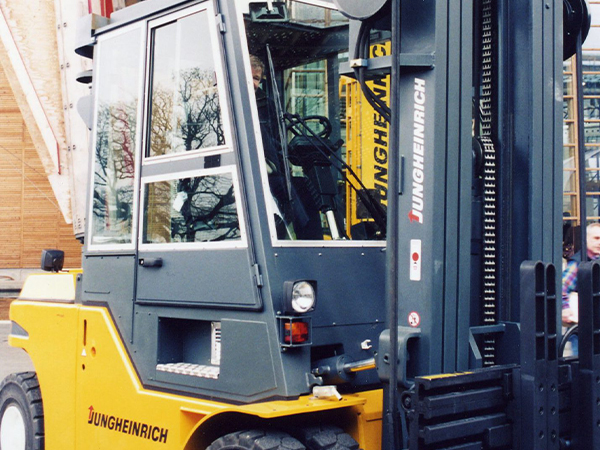

Hydraulic hose reel on forklift trucks
Hydraulic hose reel for forklift trucks

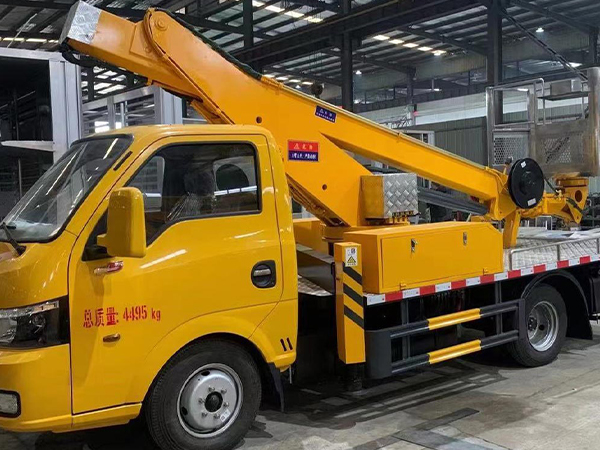

Hose reel on truck mounted crane
Hose reel for truck mounted crane
