Ultra High Pressure Water Hose Reel – Providing Smooth Hose Reel

Work Environment

Ultra high pressure water hose reelis a device used to wind and store ultra high pressure water hoses (or other liquid media hoses) dedicated to high-intensity work such as high pressure water jet cleaning, cutting, and impact. Our UHP hose reels are carefully designed to ensure sufficient strength and pressure resistance to hold high pressure hoses and provide a reliable control system for winding and unrolling. This makes it easier and more convenient to use a high pressure water hose, allowing you to quickly tackle a variety of cleaning and impact tasks. We offer two different coil diameters to choose from, including AHSH790D and AHSH660D. Whether it"s a sanitation truck, a dredging truck, or a road-cleaning vehicle, we have the perfect solution for you.

Features

  • Dual support frame, strong and stable
  • Zero maintenance, overall corrosion, and oil resistance
  • Low torque under high pressure, and high operating efficiency

AHSH790D

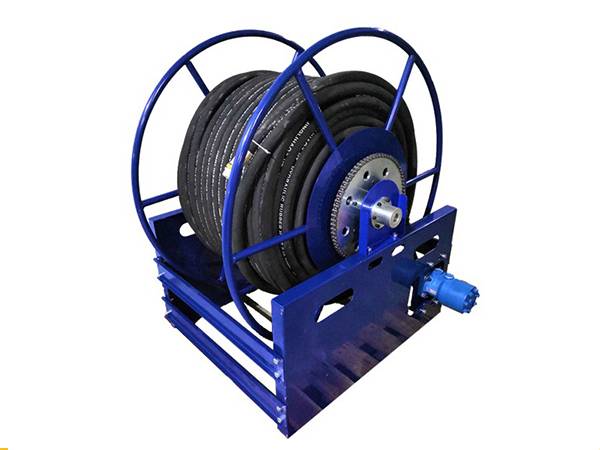

A UHP water hose reel with blue frame
AHSH790D hose reel

Specification

  • Drive mode: hydraulic drive
  • Maximum working pressure: 1.6 MPa
  • Applicable temperature: -20 °C to +120 °C
  • Reel material: carbon steel
  • Hose material: high pressure resistant hose
  • Color: red, black, yellow, and blue
P/N Port & Core Number Hose I.D. / Cable Square Max. Pressure
(MPa)		 Working Length
(m)		 Reel Inlet Hose Outlet
ASH790D0108016060 1 1-1/4" 1.6 60 BSPT 1-1/4".M BSPT 1-1/4".M
ASH790D0108016050 1 1-1/2" 1.6 50 BSPT 1-1/2".M BSPT 1-1/2".M
P/N Reel Diameter
(mm)		 Roller Drum Outer Diameter
(mm)		 Reel Height
(mm)		 Axial Length
(mm)		 Radial Depth
(mm)		 Base Length
(mm)		 Base Width
(mm)		 Hole Axial Distance
(mm)		 Hole Radial Distance
(mm)		 Numerical Aperture
(mm)		 Through Hole Diameter
(mm)
A B C D E F G H I J K
ASH790D0108016060 790 380 952 937 825 747 790 711 735 4 18
ASH790D0108016050 790 380 952 937 825 747 790 711 735 4 18

AHSH660D

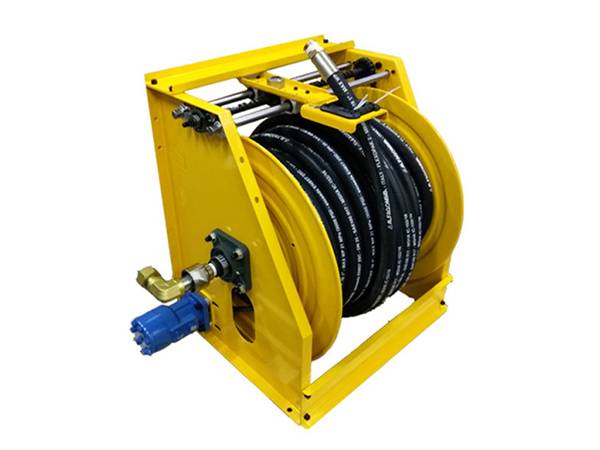

A UHP water hose reel with yellow frame
AHSH660D hose reel

Specification

  • Hose winding method: hydraulic drive
  • Maximum working pressure: 30 MPa
  • Applicable temperature: -20 °C to +120 °C
  • Reel material: carbon steel
  • Hose material: high pressure resistant hose
  • Color: red, black, yellow, and blue
P/N Port & Core Number Hose I.D. / Cable Square Max. Pressure
(MPa)		 Working Length
(m)		 Reel Inlet Hose Outlet
AHSH660D0101300030 1 1/4" 30 30 BSPT 1".F BSPT 1/4".M
AHSH660D0102300030 1 5/16" 30 30 BSPT 1".F BSPT 3/8".M
AHSH660D0103300030 1 3/8" 30 30 BSPT 1".F BSPT 3/8".M
AHSH660D0104300030 1 1/2" 30 30 BSPT 1".F BSPT 1/2".M
AHSH660D0105300030 1 5/8" 30 30 BSPT 1".F BSPT 3/4".M
AHSH660D0106300030 1 3/4" 30 30 BSPT 1".F BSPT 3/4".M
AHSH660D0107300025 1 1" 30 30 BSPT 1".F BSPT 1".M
P/N Reel Diameter
(mm)		 Roller Drum Outer Diameter
(mm)		 Reel Height
(mm)		 Axial Length
(mm)		 Radial Depth
(mm)		 Base Length
(mm)		 Base Width
(mm)		 Hole Axial Distance
(mm)		 Hole Radial Distance
(mm)		 Numerical Aperture
(mm)		 Through Hole Diameter
(mm)
A B C D E F G H I J K
AHSH660D0101300030 697 260 753 485 697 256 340 200 270 4 18
AHSH660D0102300030 697 260 753 485 697 256 340 200 270 4 18
AHSH660D0103300030 697 260 753 485 697 256 340 200 270 4 18
AHSH660D0104300030 697 260 753 485 697 256 340 200 270 4 18
AHSH660D0105300030 697 260 753 485 697 256 340 200 270 4 18
AHSH660D0106300030 697 260 753 485 697 256 340 200 270 4 18
AHSH660D0107300025 697 260 753 485 697 256 340 200 270 4 18

Application

  • Sanitation truck
  • High pressure cleaning truck
  • Dredging truck
  • Road dredging vehicle

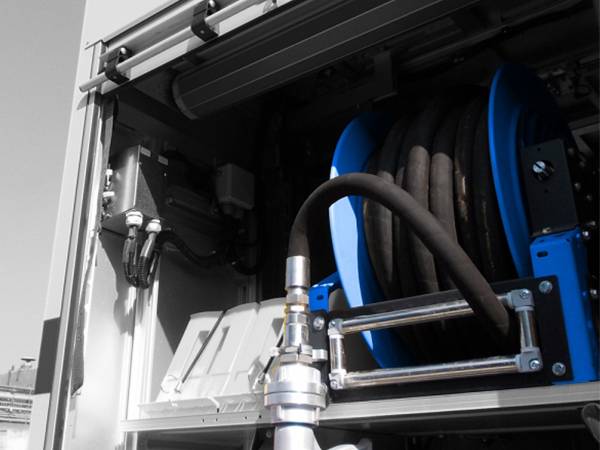

UHP water hose reel is mounted on the back of high pressure cleaning truck.
High pressure cleaning truck

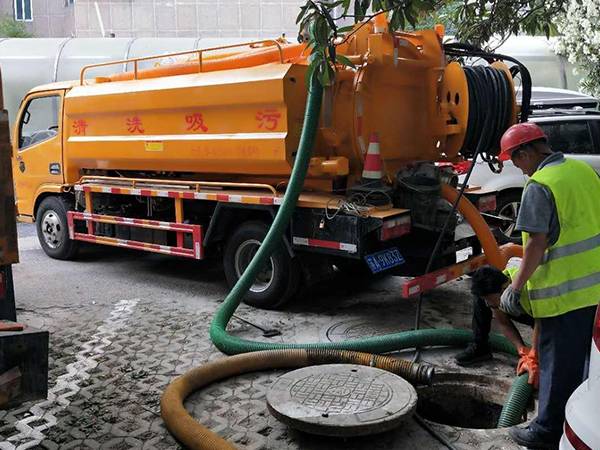

Dredging truck is fitted with an UHP water hose reel for decontamination.
Dredging truck
