Air hose reel solves your nerve-wracking tripping accidents

Air hose reel is designed to keep air hoses wrapped into together and stored safely and neatly. It can be mounted on the wall or ceiling and it is usually used in garages or car repair plant. A compressed air hose reel provides the ability to store a compressed air hose to save space.  Air hose reels keep the air hoses in the garages clean, fresh and ready to use at any time. In addition, tripping accidents often happen in the garages because of the loose air hoses, which can be well solved by using air hose reels.

We offer 5 diverse appearance and size options for air hose reels to meet the needs of various use scenarios.

Mini Air Hose Reel TY-9A

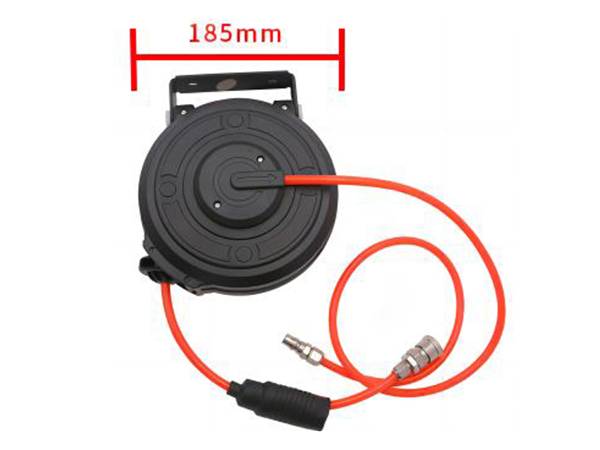

Front view of a mini air hose reel with width dimension
Front view of a mini air hose reel

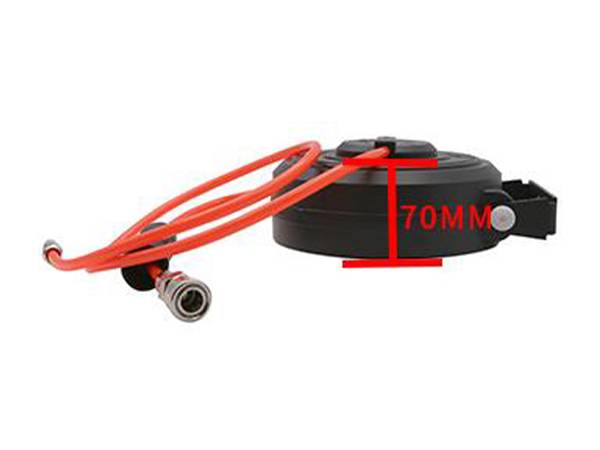

Side view of a mini air hose reel with thickness dimension
Side view of a mini air hose reel

Specification

  • Model: TY-9A
  • Shell material: ABS
  • Size: φ185 mm × 70 mm
  • Working pressure: 10–16 bar
  • Air hose material: PU
  • Air hose diameter: 8/5 mm
  • Air hose length: 6 m

Automatic Rewind Hose Reel TY-1A

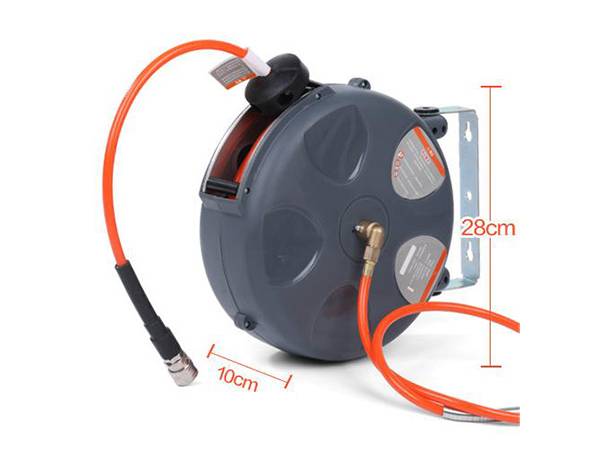

A dark gray air hose reel with sizing information
Automatic rewind hose reel TY-1A

Specification

  • Model: TY-1A
  • Shell material: ABS
  • Size: φ280 mm × 100 mm
  • Working pressure: 10–16 bar
  • Air hose material: PU
  • Air hose diameter: 8/5 mm, 10/6.5 mm, and 12/8 mm
  • Air hose length: 10 m, 12 m, and 15 m

Automatic Rewind Hose Reel TY-2A

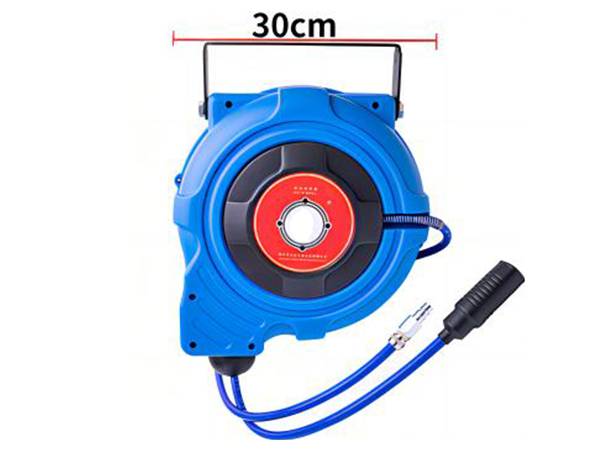

Front view of a blue automatic rewind hose reel with width dimension
Front view of automatic rewind hose reel TY-2A

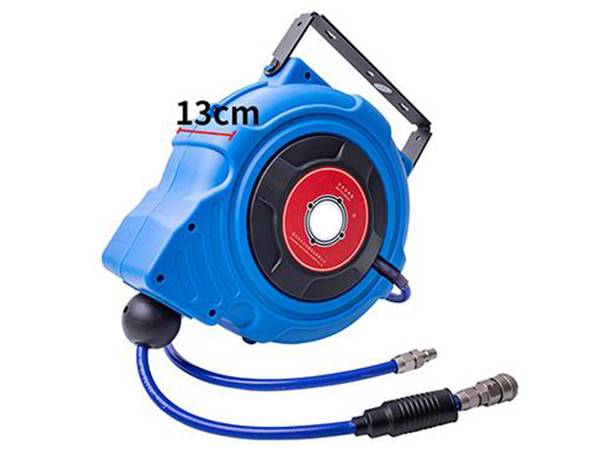

Side view of a blue automatic rewind hose reel with thickness dimension
Side view of automatic rewind hose reel TY-2A

Specification

  • Model: TY-2A
  • Shell material: PP
  • Size: φ300 mm × 130 mm
  • Working pressure: 10–16 bar
  • Air hose material: PU
  • Air hose diameter: φ10 mm and φ12 mm
  • Air hose length: 10–20 m

Automatic Rewind Hose Reel HBQL-6011

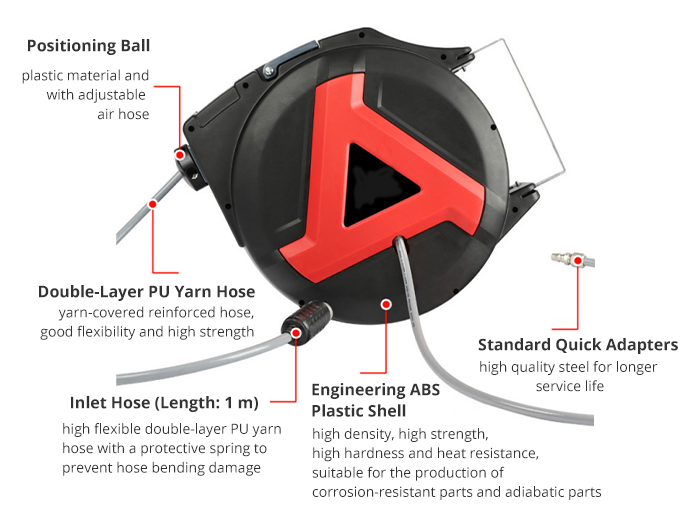

A labeled automatic rewind hose reel
Labeled automatic rewind hose reel HBQL-6011

Specification

Table 1: Air Drum HBQL-6011 Specification
Type Exterior Dimensions
(cm)
Hose Size Weight
(kg)
HBQL-6011-01 44.5 × 19.5 × 39.5 6.5 mm × 10 mm × 25 m 6
HBQL-6011-02 44.5 × 19.5 × 39.5 6.5 mm × 10 mm × 30 m 6
HBQL-6011-03 44.5 × 19.5 × 39.5 6.5 mm × 10 mm × 35 m 6
HBQL-6011-04 44.5 × 19.5 × 39.5 8 mm × 12 mm × 25 m 6
HBQL-6011-05 44.5 × 19.5 × 39.5 8 mm × 12 mm × 30 m 6
HBQL-6011-06 44.5 × 19.5 × 39.5 10 mm × 14 mm × 15 m 6
HBQL-6011-07 44.5 × 19.5 × 39.5 10 mm × 14 mm × 20 m 6
HBQL-6011-08 44.5 × 19.5 × 39.5 12 mm × 16 mm × 15 m 6
HBQL-6011-09 44.5 × 19.5 × 39.5 12 mm × 16 mm × 20 m 6

Instructions

Hose reel has a built-in self-locking device with a self-lining function. When pulling out a section that needs to be rewound, pull it out lightly, and the hose line will be automatically recovered after it crosses the self-locking device (be sure to use your hands to hold the hose lightly when rewinding).

Automatic Rewind Hose Reel TS5-QG812-20

A roll of automatic rewind hose reel under a white background
Automatic rewind hose reel TS5-QG812-20

Specification

  • Hose size: φ8 × 12 mm × 20 m
  • Hose material: PU sand-covered
  • Shell material: ABS
  • Working pressure: 15 bar
  • Packing size: 66 cm × 45 cm × 38 cm
  • Net weight: 5 kg

Automatic Rewind Hose Reel TY-3A

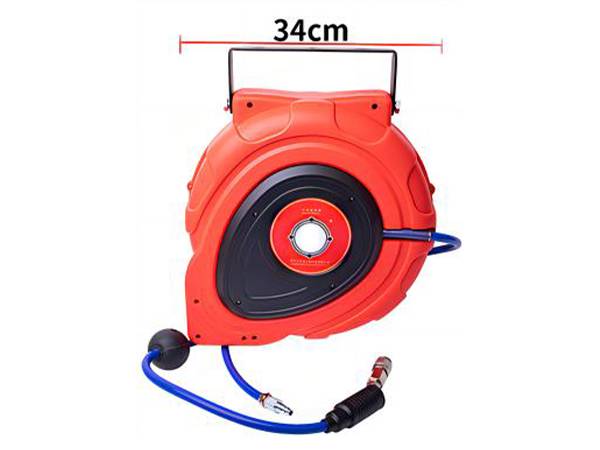

Front view of a red automatic rewind hose reel with width dimension
Front view of a red automatic rewind hose reel with width dimension

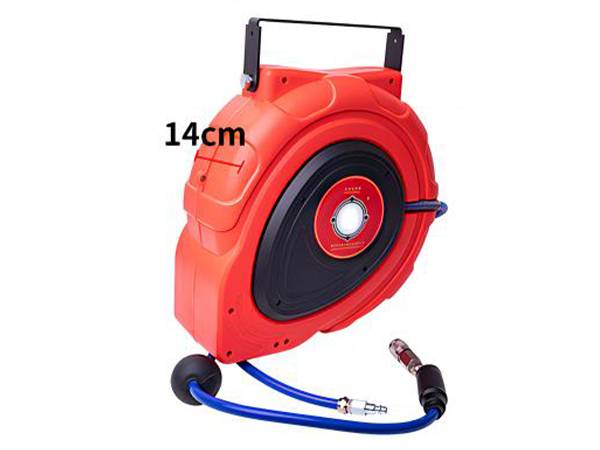

Side view of a red automatic rewind hose reel with thickness dimension
Side view of automatic rewind hose reel TY-3A

Specification

  • Model: TY-3A
  • Shell material: PP
  • Size: φ355 mm × 150 mm
  • Working pressure: 10–16 bar
  • Air hose material: PU
  • Air hose diameter: φ10 mm and φ12 mm
  • Air hose length: 10–20 m

Automatic Rewind Hose Reel TY-8H

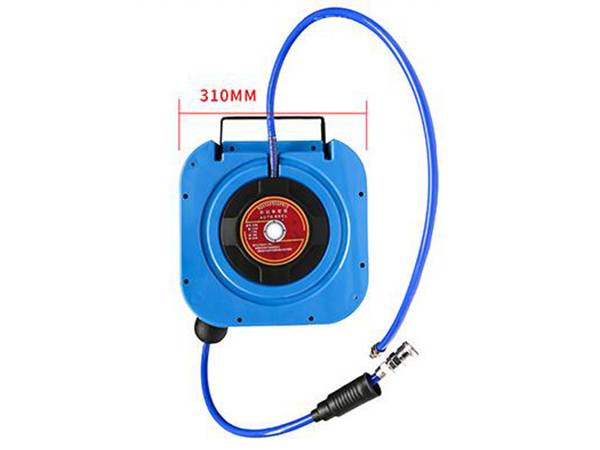

Front view of a blue automatic rewind hose reel with width dimension
Front view of automatic rewind hose reel TY-8H

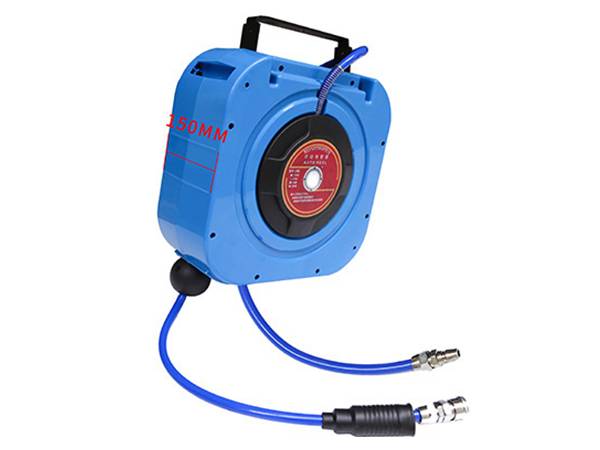

Side view of a blue automatic rewind hose reel with thickness dimension
Side view of automatic rewind hose reel TY-8H

Specification

  • Model: TY-8H
  • Shell material: PP
  • Size: φ310 mm × 150 mm
  • Working pressure: 10–16 bar
  • Air hose material: PU
  • Air hose diameter: φ8 mm, φ10 mm, and φ12 mm
  • Air hose length: 10–25 m

Application

  • Automotive repair and maintenance
  • Gas station
  • Industrial production lines
  • Construction sites

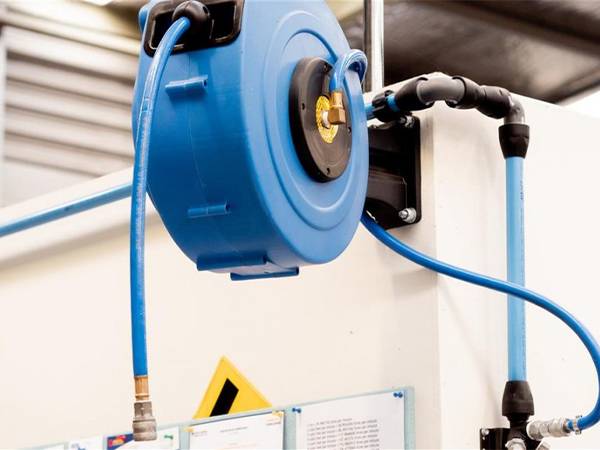

Air hose reel mounted on factory wall
Air hose reel for supplying air to factory

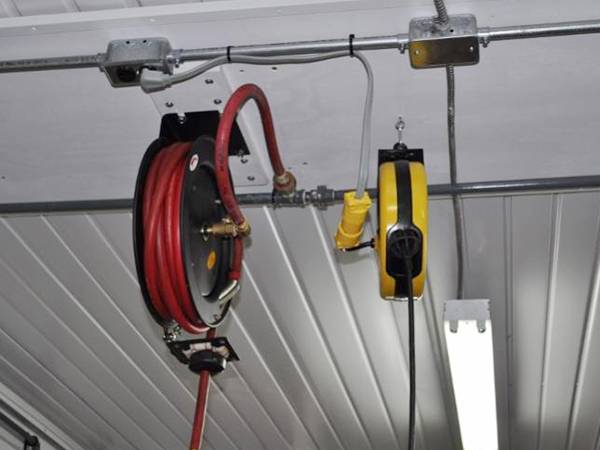

Air hose reel mounted in the ceiling of automotive repair shop
Air hose reel for automotive repair shop
