Industrial high pressure washer hose reel is high quality equipment designed for high pressure cleaning. Whether you are faced with dirt on the exterior wall of a building or need to deal with stubborn contamination of industrial equipment, machine parts, or pipelines, our hose reels can quickly solve your cleaning requirements. Featuring a compact design and high quality steel construction, they are equipped with open rotary joints to ensure the delivery of high pressure fluids. These hose reels can be mounted on any flat surface, such as walls, ceilings, or on top of objects, and can be adapted to different operating environments.

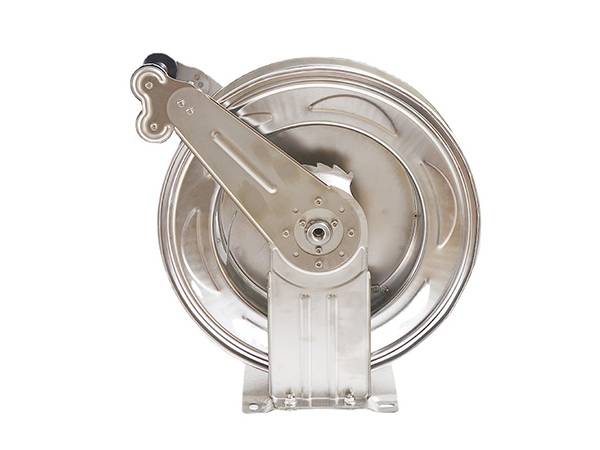

We offer industrial high pressure washer hose reels in the following two materials: carbon steel hose reels and stainless steel hose reels.
Features
Specification
| Type | Size | Specification (mm) |
Working Pressure (MPa) |
I.D. × O.D. × L | Input Hose (m) |
Output Hose (m) |
|---|---|---|---|---|---|---|

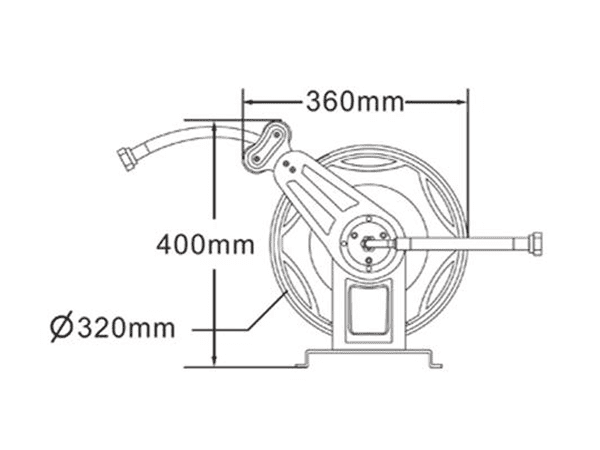

| IHRCS-7 | S | 400 × 360 × φ320 | 20 | 6 mm × 14 mm × 10 m | 1 | 10 |
| 20 | 6 mm × 16 mm × 10 m | 1 | 10 | |||
| 20 | 6 mm × 14 mm × 12 m | 1 | 10 | |||

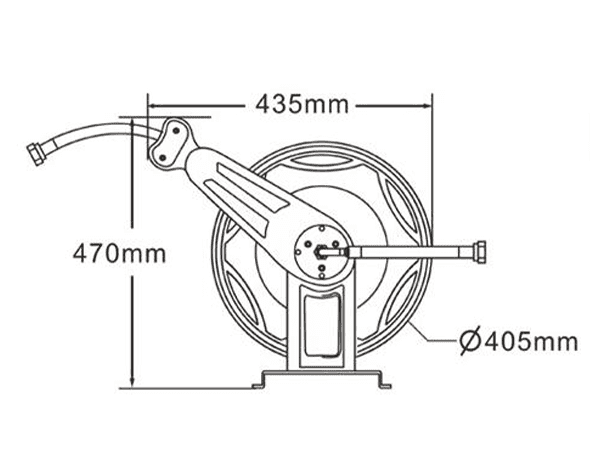

| IHRCS-6 | M | 470 × 435 × φ405 | 20 | 6 mm × 14 mm × 10 m | 1 | 10 |
| 20 | 6 mm × 14 mm × 12 m | 1 | 10 | |||
| 20 | 6 mm × 14 mm × 15 m | 1 | 10 | |||

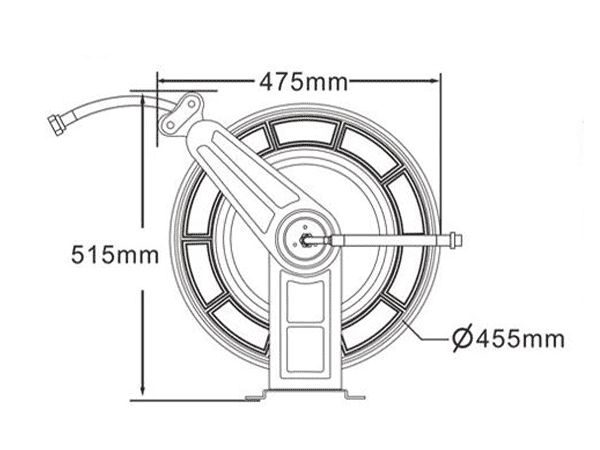

| IHRCS-5 | L | 515 × 475 × φ455 | 20 | 6 mm × 14 mm × 15 m | 1 | 10 |
| 20 | 6 mm × 14 mm × 18 m | 1 | 10 | |||
| 20 | 6 mm × 14 mm × 20 m | 1 | 10 | |||
| 20 | 8 mm × 16 mm × 15 m | 1 | 10 | |||
| 20 | 8 mm × 16 mm × 18 m | 1 | 10 | |||
| 20 | 8 mm × 16 mm × 20 m | 1 | 10 |
Features
Specification
| Type | Specification (mm) |
Working Pressure (MPa) |
I.D. × O.D. × L | Input Hose (m) |
Output Hose (m) |
|---|---|---|---|---|---|

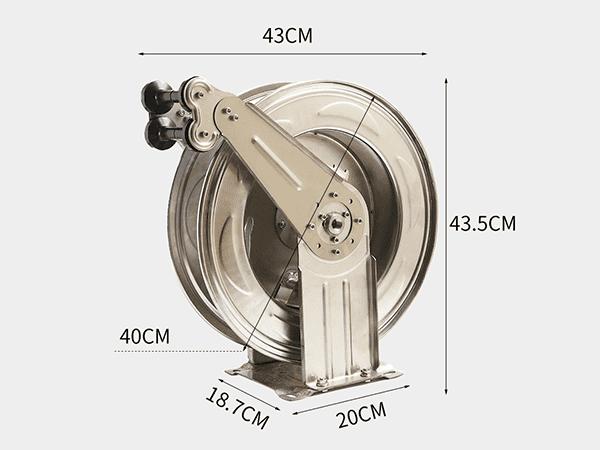

| IHRSS-1 | 435 × 430 × φ400 | 35 | 10 mm × 20 mm × 30 m | 1 | 10 |

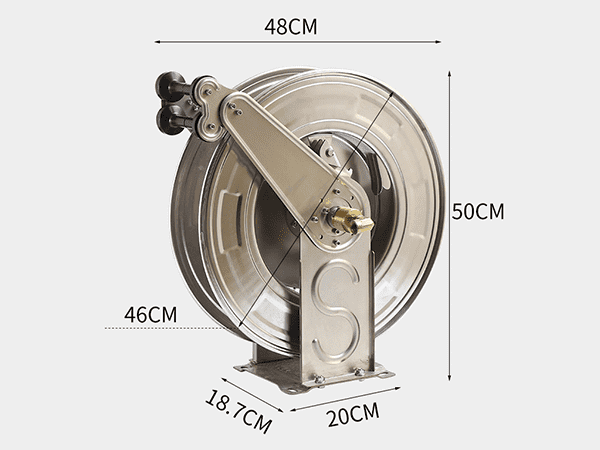

| IHRSS-2 | 500 × 480 × φ460 | 35 | 13 mm × 23 mm × 20 m | 1 | 10 |

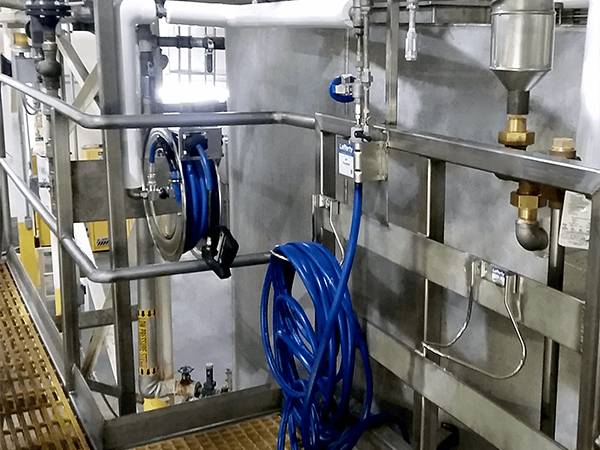

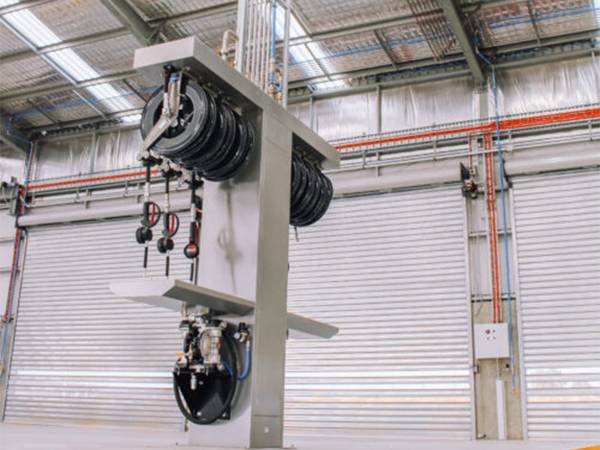

Application
