Food Grade Stainless Steel Hose Reel with Hose – High Efficiency & Durability
The food-grade stainless steel hose reel with hose is specifically designed for environments with stringent hygiene requirements, making it suitable for critical operations such as food and beverage production and pre-cleaning. The main body of this product is constructed from food-grade stainless steel, providing excellent corrosion resistance to ensure maximum hygiene and food safety.

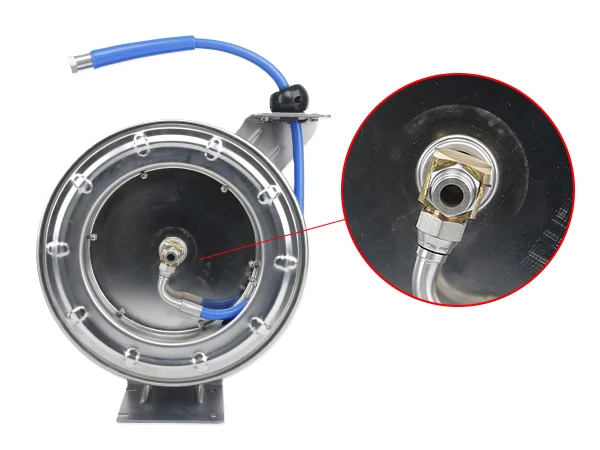

Food-grade stainless steel hose reel with hose and brass inlet

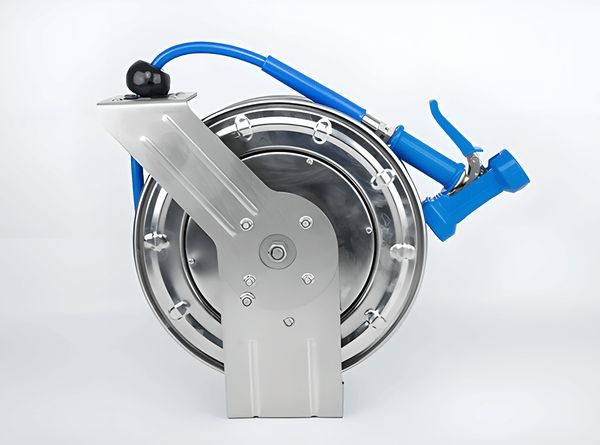

Food-grade stainless steel hose reel with hose and trigger nozzle
Features
- The hose protector guides hose expansion through the arm to prevent friction, thus effectively protecting the hose from damage.
- The ratchet latch assembly allows the hose to be locked at the desired length.
- Once the hose is fully extended, the ratchet mechanism unlocks to prevent the hose from slipping off at full extension.
- Equipped with a food-grade, three-layer hydraulic steel wire hose (blue).
- The metal connection between the hose and the main body is heat resistant up to 100 °C.
Specification
- Hose reel material: AISI 304 stainless steel
- Inlet material: Brass
- Hose length: Available in 10.5 m and 15.5 m
- Hose reel dimensions: 40 × 15 × 45 cm
- Inlet connection: Standard 1/2" male thread
Applications
- Construction sites
- Offshore service stations
- Food processing plants
For chemical plants
For food processing plant
