Hose-Free Food-Grade Stainless Steel Reel – Cost Reduction and Efficiency Improvement

The hose-free food grade stainless steel reel is a basic unit that includes only the stainless steel reel body, allowing customers to select hoses based on their specific application needs. This design helps reduce costs by eliminating bundled hose sales. During operation, only the hose needs to be replaced, allowing the reel body to be reused.

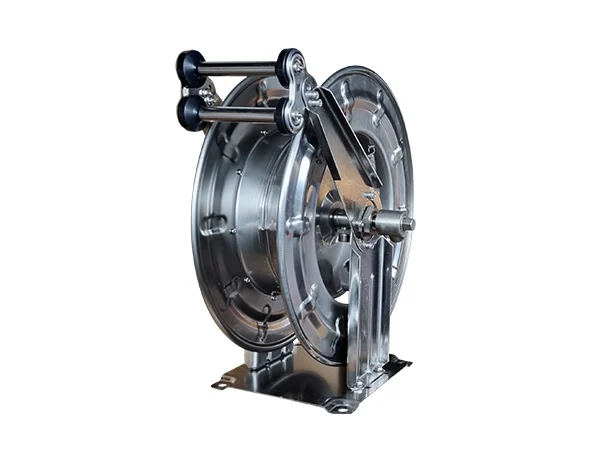

With dual-arm guide

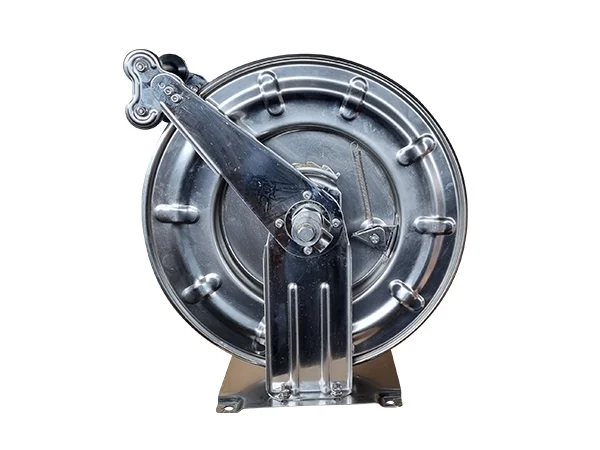

Spring-driven type

Features

• The steel structure is precision-formed by stamping and coated with electrostatic polyester powder, providing excellent corrosion and oxidation resistance.
• Easy and flexible disassembly is achieved through a rotating support plate and adjustable spring position.
• Spring-driven retractable hose.
• Hose stop device to reduce pressure loss.
• All bolts and nuts are made from high-quality carbon steel.
• Dual-arm guide provides superior stability with multiple adjustable positions.

Specifications

• Material: 304 stainless steel
• Hose inner diameter: 1/4", 5/16", 3/8", 1/2"
• Hose length: 15 m, 20 m, 30 m
• Working pressure: 500 bar, 300 bar, 200 bar, 150 bar
• Fluid: Grease / Water / Air / Oil
• Base dimensions:
  • 15 m: 200 mm × 187 mm
  • 20 m: 232 mm × 159 mm
  • 30 m: 260 mm × 228 mm
• Installation: Fixed
• Reel Type: Spring

Application

• Kitchen
• Automotive repair shop
• Factory

For food plants

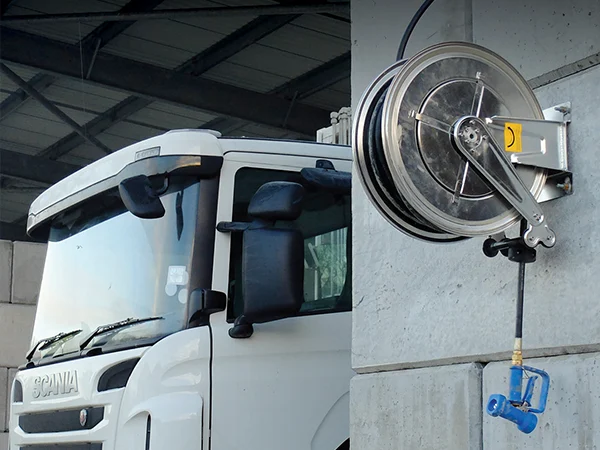

For automotive repair shops
