PVC Air Hose Has Good Wear Resistance and Corrosion Resistance

Five different colored PVC air hoses
PVC air hose

PVC air hose is a lightweight and durable hose, typically made from high-quality polyvinyl chloride (PVC) material, featuring good wear resistance and corrosion resistance, making it suitable for use in various environments. PVC air hose has good flexibility, is easy to bend and operate, and can withstand a certain amount of pressure, making it suitable for use with pneumatic tools, air compressors, and spraying equipment.

Specifications

  • Classification
    • Polyester yarn reinforced type
      • Tube: 100% virgin PVC compound.
      • Reinforcement: high tensile strength polyester yarn.
      • Cover: high grade PVC compound.
    • High pressure type
      • Explosion-proof layer: 100% virgin PVC compound.
      • Reinforcement: high tensile strength polyester yarn.
      • Middle tube: 100% virgin PVC compound.
      • Reinforcement: high tensile strength polyester yarn.
      • Cover: high grade PVC compound.
  • Temperature range: -26 °C to +65 °C (-15 °F to 150 °F).
  • Warranty: 1 year limited warranty.
  • Standard:
    • ISO 5774
    • According to relevant CE regulations.
  • Marking: longitudinal red and blue marking yarns.
  • Fitting: 1/4 NPT.
  • Fitting attaching method: crimp.
  • Package: wrapped with plastic film, then packed with woven bag. Or packed as customers' requirement.

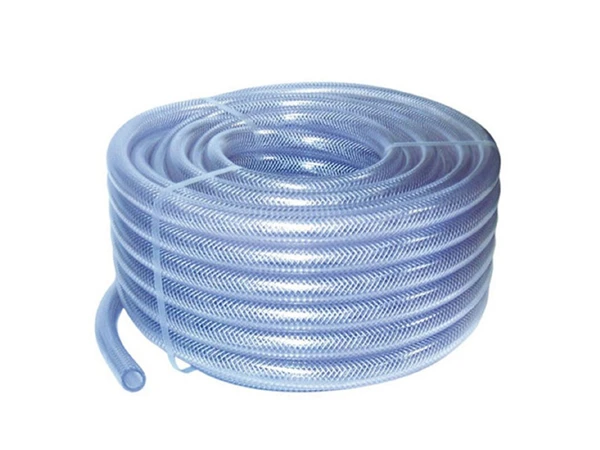

A roll of polyester yarn reinforced type air hose
PVC air – polyester yarn reinforced type hose
A roll of polyester yarn reinforced type air hose

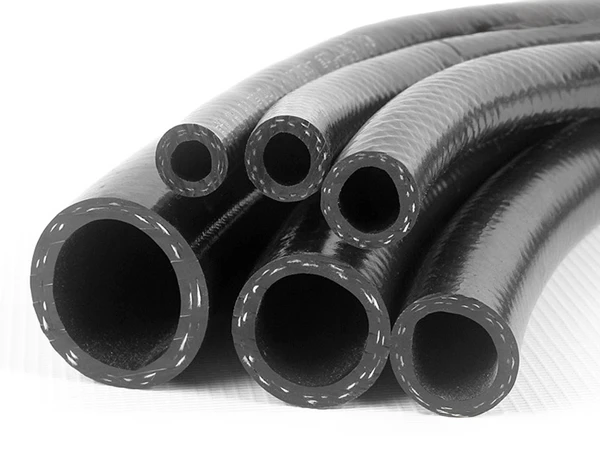

PVC air hose – high pressure type
A roll of polyester yarn reinforced type air hose

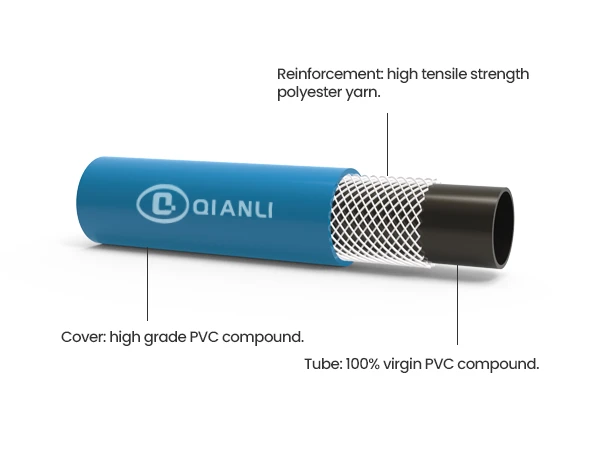

Polyester yarn reinforced type drawing
A roll of polyester yarn reinforced type air hose

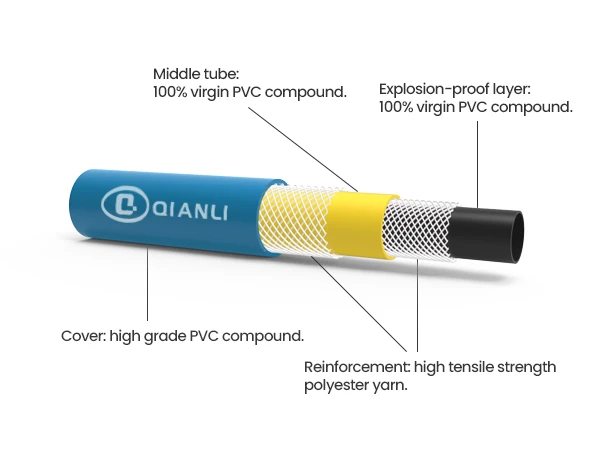

High pressure type drawing
Table 1: Specification of Polyester Yarn Reinforced PVC Air Hose
Item I.D. O.D. Max. W.P. B.P. Weight Standard Length Volume
(inch) (mm) (mm) (psi) (bar) (psi) (bar) (lbs/feet) (feet) m3
QL-P-025 1/4 6.35 12.06 300 20.68 870 60 0.080 500 0.024
QL-P-031 5/16 7.87 14.00 300 20.68 870 60 0.950 500 0.026
QL-P-038 3/8 9.50 15.24 300 20.68 870 60 0.110 500 0.041
QL-P-050 1/2 12.70 19.05 300 20.68 870 60 0.166 500 0.029
QL-P-063 5/8 15.90 22.86 300 20.68 870 60 0.266 300 0.040
QL-P-075 3/4 19.05 26.90 300 20.68 870 60 0.325 300 0.056
QL-P-100 1 25.40 33.78 218 15.00 653 45 0.408 300 0.094
QL-P-125 1-1/4 31.75 44.00 218 15.00 653 45 0.658 300 0.166
QL-P-150 1-1/2 38.10 50.00 218 15.00 653 45 0.762 300 0.271
QL-P-200 2 50.80 64.00 145 10.00 435 30 1.151 300 0.375
Table 2: Specification of High Pressure PVC Air Hose
Item I.D. O.D. Max. W.P. B.P. Standard Length
(inch) (mm) (mm) (psi) (bar) (psi) (bar) (feet)
QL-H-025 1/4 6 13 580 40 2320 160 328
QL-H-031 5/16 8 15 580 40 2320 160 328
QL-H-038 3/8 10 17 580 40 2320 160 328
QL-H-050 1/2 13 21 580 40 1740 120 328
QL-H-063 5/8 16 25 580 40 1740 120 164
QL-H-075 3/4 19 19 580 40 1740 120 164
QL-H-100 1 25 36 580 40 1740 120 164
QL-H-125 1-1/4 32 43 580 40 1740 120 164
QL-H-150 1-1/2 38 49 580 40 1740 120 164
QL-H-200 2 50 63 580 40 1740 120 164

Applications

  • Industrial washing.
  • Medicine machine.
  • High-pressure spray.
  • Pneumatic tools.
  • Paint works.
  • Excavation works.
  • Mold machine water cooling.
