Rubber Air Hoses – Various Reinforcement Layer Styles Available

Rubber air hoses are typically made from Styrene-Butadiene Rubber (SBR), Natural Rubber (NR), or Ethylene Propylene Diene Monomer (EPDM) as the inner tube material, offering excellent wear resistance and aging performance, ensuring long-term use of the hoses in various harsh environments; The reinforcement layer can be made of polyester fiber spiral, high-strength synthetic yarn, or high-strength synthetic rope, which can effectively enhance the tensile and compressive strength of the hose, ensuring safety under high-pressure conditions.

Rubber air hoses can maintain good flexibility in a temperature range of -40°C to +180°C, making them suitable for various working environments and temperature changes. This high-pressure air hose is particularly suitable for the delivery of compressed air and inert gases, meeting the needs of various industrial applications.

Three red rubber air hoses and four black rubber air hoses
Rubber air hose

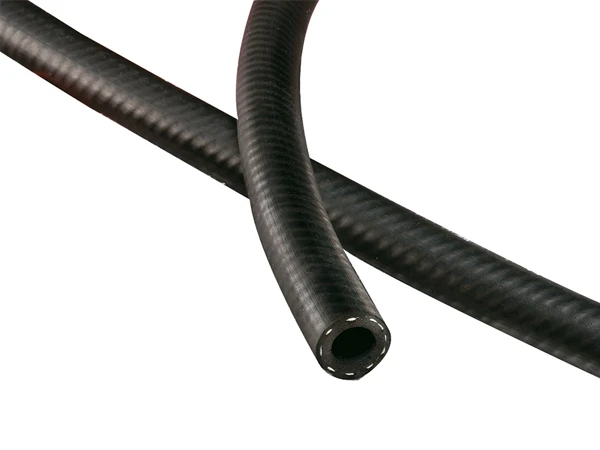

A cross-section display of a rubber air hose
Rubber air hose

Specifications

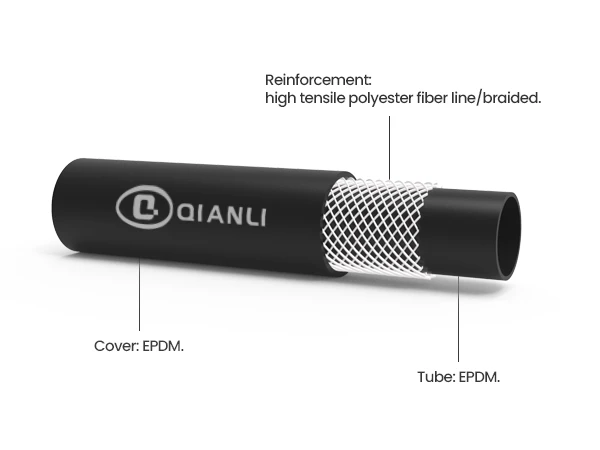

A rubber air hose with a reinforcement layer of high tensile polyester fiber line
QLR-01P Rubber Air Hose
  • Construction
    • Tube: EPDM.
    • Reinforcement: high tensile polyester fiber line/braided.
    • Cover: EPDM.
  • Temperature: -40 °C to + 150 °C.
  • Color: black, red, blue, etc.
  • Application: for uses where heat, oil, acid, alkaline and wear resistance are required.
Table 1: Specification of QLR-01EP Rubber Air Hose
Item I.D. O.D. W.P. B.P. Length Volume Weight
(inch) (mm) (mm) (bar) (psi) (mm) (bar) (m) (cbm/roll) (kg/m)
QLR-01EP06 1/4 6 14 20 300 60 900 100 0.025 0.21
QLR-01EP08 5/16 8 16 20 300 60 900 100 0.03 0.25
QLR-01EP10 3/8 10 18 20 300 60 900 100 0.04 0.31
QLR-01EP13 1/2 13 22 20 300 60 900 100 0.07 0.43
QLR-01EP16 5/8 16 26 20 300 60 900 50 0.07 0.58
QLR-01EP19 3/4 19 30 20 300 60 900 50 0.08 0.73
QLR-01EP25 1 25 37 20 300 60 900 50 0.09 0.98

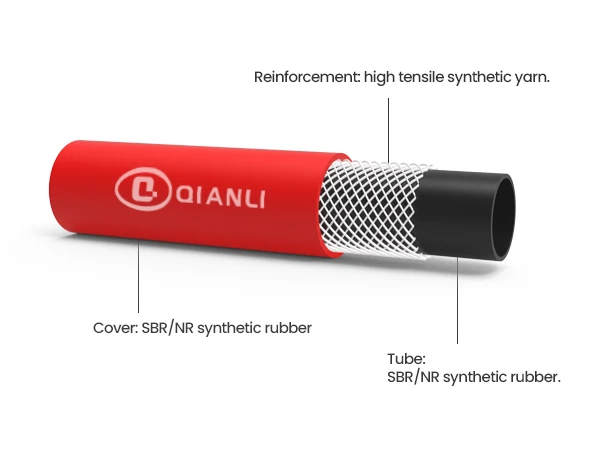

A rubber air hose with a reinforcement layer of high tensile synthetic yarn
QLR-02SY Rubber Air Hose
  • Construction
    • Tube: SBR/NR synthetic rubber.
    • Reinforcement: high tensile synthetic yarn.
    • Cover: SBR/NR synthetic rubber
  • Temperature: -40 °C to + 100 °C.
  • Color: black, red, yellow, blue, green, etc.
  • Application: for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, etc.
  • Hose surface: smooth surface, cloth-wrapped surface, groove surface.
Table 2: Specification of QLR-02SY Rubber Air Hose
Item I.D. O.D. W.P. B.P. Bending Radius Plies
(inch) (mm) (mm) (psi) (bar) (psi) (bar) (inch)
QLR-02SY10 3/8 10 18 435 30 1305 90 5.12 1
QLR-02SY12 1/2 12.5 23 435 30 1305 90 7.08 1
QLR-02SY16 5/8 16 26 362 25 1087 75 8.27 1
QLR-02SY19 3/4 19 29 362 25 1087 75 9.45 1
QLR-02SY22 7/8 22 32 290 20 870 60 11.02 1
QLR-02SY25 1 25 35 290 20 870 60 14.76 1
QLR-02SY32 1-1/4 32 42 217 15 652 45 16.54 2
QLR-02SY38 1-1/2 38 48 217 15 652 45 19.68 2
QLR-02SY45 1-3/4 45 56 174 12 522 36 24.8 2
QLR-02SY50 2 50 64 174 12 522 36 24.8 2
QLR-02SY57 2-1/4 57 70 145 10 435 30 33.66 2
QLR-02SY64 2-1/2 64 78 145 10 435 30 37.79 2
QLR-02SY76 3 76 90 116 8 348 24 44.88 2
QLR-02SY90 3-35/64 90 106 87 6 261 18 53.15 2
QLR-02SY100 4 100 120 87 6 261 18 60.24 2

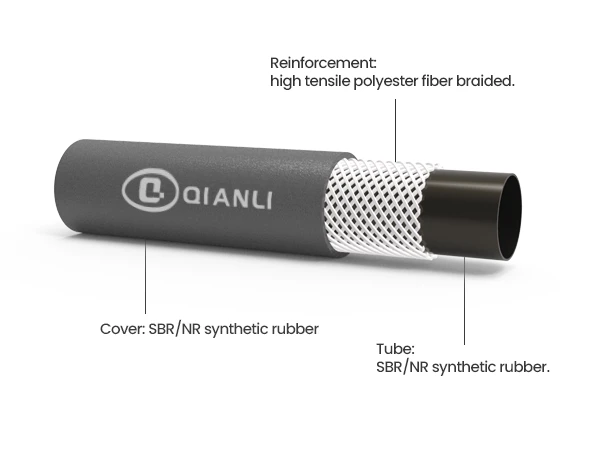

A rubber air hose with an inner tube made of SBR/NR synthetic rubber
QLR-03SC Rubber Air Hose
  • Construction
    • Tube: SBR/NR synthetic rubber.
    • Reinforcement: high tensile polyester fiber braided.
    • Cover: SBR/NR synthetic rubber.
  • Temperature: -40 °C to + 100 °C.
  • Color: black, red, yellow, blue, green, etc.
  • Application: for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, etc.
  • Hose surface: smooth surface, cloth-wrapped surface, groove surface.
Table 3: Specification of QLR-03SC Rubber Air Hose
Item I.D. O.D. W.P. B.P Length Volume Weight
(inch) (mm) (mm) (bar) (psi) (bar) (psi) (m) (cbm/roll) (kg/m)
QLR-03SC05 3/16 5 11.5 20 300 60 900 100 0.02 0.15
QLR-03SC06 1/4 6 13 20 300 60 900 100 0.025 0.17
QLR-03SC08 5/16 8 15 20 300 60 900 100 0.03 0.22
QLR-03SC10 3/8 10 17 20 300 60 900 100 0.04 0.26
QLR-03SC13 1/2 13 21 20 300 60 900 100 0.07 0.40
QLR-03SC16 5/8 16 24 20 300 60 900 100 0.07 0.45
QLR-03SC19 3/4 19 29 20 300 60 900 50 0.08 0.70
QLR-03SC25 1 25 36 12 180 36 540 50 0.09 0.85
QLR-03SC32 1-1/4 32 44 10 150 30 450 50 0.16 1.40
QLR-03SC38 1-1/2 38 51 10 150 30 450 50 0.20 1.70
QLR-03SC51 2 51 65 10 150 30 450 50 0.20 2.20

Applications

The multipurpose utility hoses are widely used for compressed air and inert gas conveying in marine, mining, tunneling, drilling rigs, oil & gas exploration, shipbuilding, offshore & tank cleaning, etc.
